SavePayload Process

Our template solution includes the implementation of one typical Dell Boomi process for message payload management. Within this process, all the needed logic will be implemented to store, when needed, the message payload together with the additional interface details.

Before we go into the components of the SavePayload process, we must emphasize the importance of the ability to turn on and off the message persistence. Also, for the proper test case creation and execution, there is the need to identify the landscape of the processed message.
To achieve that, we recommend the creation of a Process Properties Extension named PP_IFTT. Please remember to add this extension to the SavePayload Process.
The PP_IFTT extension should have two properties.

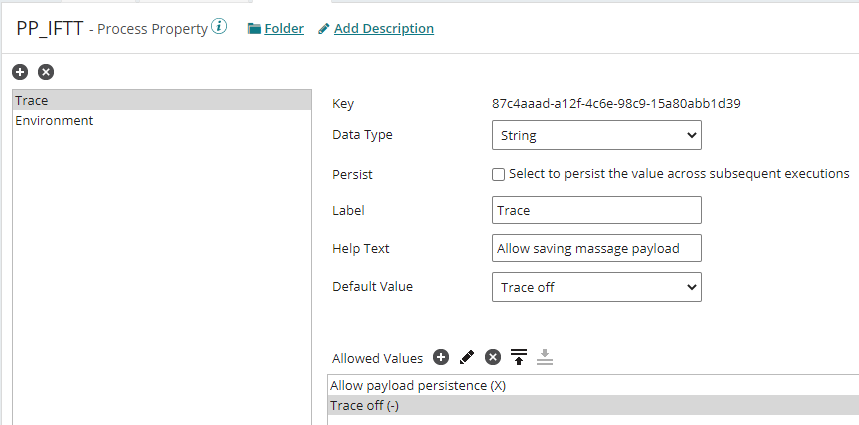

• Trace: type of string and the following Allowed Values:

  • Allow payload persistence = “X”

  • Trace off = “-”

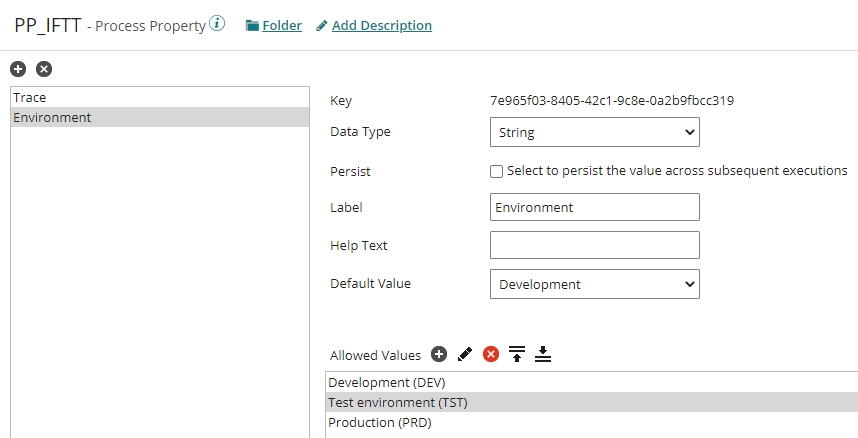

• Environment: type of string and the Allowed Values according to your landscapes

Of course, those properties need to be configured accordingly on each environment you plan to use on Int4 IFTT. The user needs an administrator role on the Dell Boomi account to configure the extension properties.

Also, please note that there must be provided to this process a Dynamic Process Property named DPP_BOOMI_STEP with the values “INPUT” or “OUTPUT” accordingly.

Please find below all the components of the SavePayload Process explained in details:

• Data Passthrough Start Shape - Or according to the call of this process

• Decision shape which validates the global parameter “Trace“ - only when “Trace” is on, the payload will be sent to Int4 IFTT

• Set Properties Shape to read the value of the custom HTTP Header x-wss-correlationid

• Data Process Shape with the following custom Groovy Script to populate the additional information for the Int4 IFTT WebService call

  GROOVY

  import java.util.Properties
  import java.io.InputStream
  import com.boomi.execution. * import com.boomi.execution.ExecutionUtil
  import com.boomi.execution.ExecutionManager

  //System Line
  ExecutionUtil.setDynamicProcessProperty('DPP_BOOMI_SYSTEM_LINE', "BOOMI", false)

  //Execution ID
  def executionId = ExecutionManager.getCurrent().getTopLevelExecutionId()
  ExecutionUtil.setDynamicProcessProperty('DPP_BOOMI_EXECUTION_ID', executionId, false)

  //Process Name
  def processName = ExecutionManager.getCurrent().getParent().getProcessName()
  ExecutionUtil.setDynamicProcessProperty('DPP_BOOMI_PROCESS_NAME', processName.toUpperCase(), false)

  //Payload
  def payload = dataContext.getStream(0)
  payload = payload.getText("UTF-8")
  payload = payload.bytes.encodeBase64().toString()
  ExecutionUtil.setDynamicProcessProperty('DPP_BOOMI_PAYLOAD', payload, false)

  //Message Id
  def messageId = org.apache.commons.lang.RandomStringUtils.randomAlphanumeric(25)
  ExecutionUtil.setDynamicProcessProperty('DPP_BOOMI_MESSAGE_ID', messageId, false)

  for (int i = 0; i < dataContext.getDataCount(); i++) {
    InputStream is = dataContext.getStream(i)
    Properties props = dataContext.getProperties(i)
    dataContext.storeStream(is, props)
  }

• Map Shape to create a proper XML sent to Int4 IFTT the payload with the additional interface and test run information. The target structure is as below.



  Map the following elements:

  • DPP_BOOMI_CORRELATION_ID → IV_CORRELATION_ID

  • DPP_BOOMI_EXECUTION_ID → IV_EXECUTION_ID

  • DPP_BOOMI_PROCESS_NAME → IV_INTERFACE

  • PP_IFTT-Environment → IV_LANDSCAPE_ID

  • DPP_BOOMI_MESSAGE_ID → IV_MESSAGE_ID

  • DPP_BOOMI_PAYLOAD → IV_PAYLOAD

  • DPP_BOOMI_STEP → IV_STEP_ID

  • DPP_BOOMI_SYSTEM_LINE → IV_SYSTEM_ID

• Connector Shape to Int4 IFTT WebService - configured accordingly

• Stop Shapes to close both paths of the Process

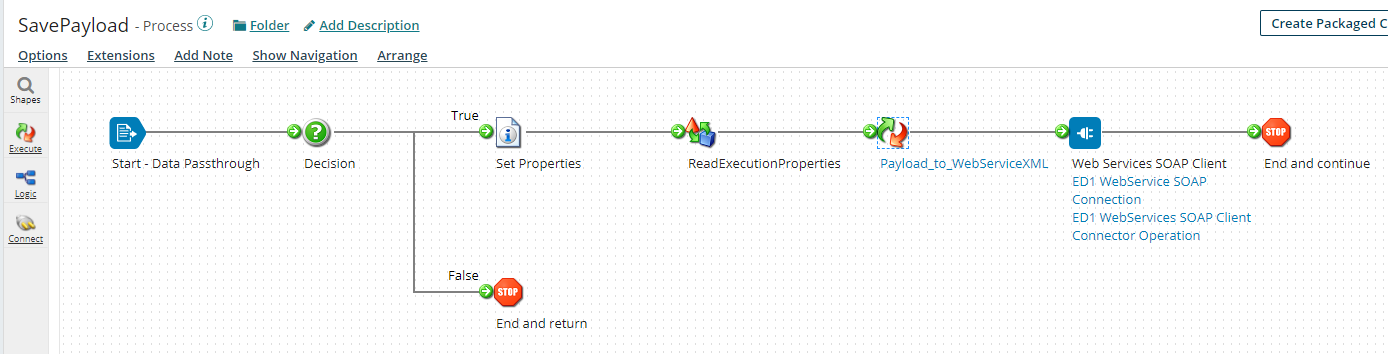

After creating the SavePayload Process and making a call to it through another process, you should be able to save the payloads to Int4 IFTT. The template process should look like below.
