Int4 Suite SAP PI/PO preparation

These instructions should be executed by SAP Basis team or Your SAP system administrator

To learn how to obtain the installation package please go to the https://int4support.atlassian.net/wiki/x/KYBipg page.

Configuring of SAP PI/PO middleware platform

Int4 Suite virtualization ICOs

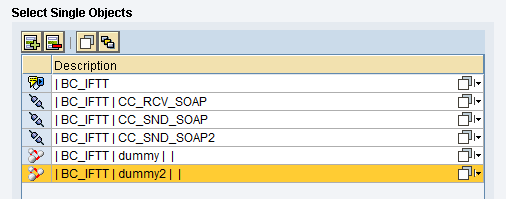

In order to send test messages from Int4 Suite to SAP PI/PO system two technical ICOs must be created in the SAP PI/PO’s Integration Builder. Please import the Int4 Suite Virtualization ICOs SAPPO 750.tpz archive from the installation package. The archive contains below objects:

Before activation, open the CC_RCV_SOAP and setup target URL as localhost.

In case when it is not possible to import the objects from .tpz archive, please go through the
https://int4support.atlassian.net/wiki/x/fwCrpg section.

Configuring connection from Int4 Suite to SAP PI/PO

Create RFC destination for SAP PI/PO.

Before creating the RFC make sure to have:

valid endpoint URL - the expected format is:

https://<host>:<port>/XISOAPAdapter/MessageServlet

imported PI/PO SSL certificate in transaction STRUST (in case of HTTPS)

Connection Type:	G
Target host:	copy <host> part of the PI/PO url
Service no. (port):	copy <port> part of the PI/PO url
Basic authentication:	X
User:	PI/PO communication user
Password:	PI/PO communication user password
SSL:

For this RFC Destination please use a SAP PI/PO technical communication user with the following set of roles applied: https://int4support.atlassian.net/wiki/x/PIAPJg

Assign created RFC destination in Int4 Suite Customizing Wizard (Maintain PI/PO Java stack RFC Destination step)
