Int4 Suite SAP PI/PO preparation

These instructions should be executed by SAP Basis team or Your SAP system administrator

To learn how to obtain the installation package please go to the Get Int4 Suite page.

Configuring of SAP PI/PO middleware platform

Int4 Suite virtualization ICOs

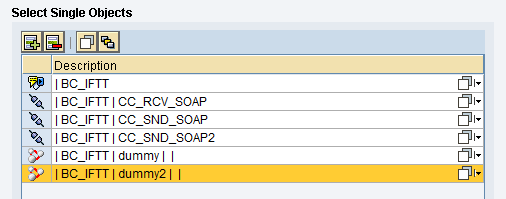

In order to send test messages from Int4 Suite to SAP PI/PO system two technical ICOs must be created in the SAP PI/PO’s Integration Builder. Please import the Int4 Suite Virtualization ICOs SAPPO 750.tpz archive from the installation package. The archive contains below objects:

Before activation, open the CC_RCV_SOAP and setup target URL as localhost.

In case when it is not possible to import the objects from .tpz archive, please go through the
Manual creation of Int4 Suite virtualization ICOs (optional) section.

Configuring connection from Int4 Suite to SAP PI/PO

Create RFC destination for SAP PI/PO.

Before creating the RFC make sure to have:

valid endpoint URL - the expected format is:

https://<host>:<port>/XISOAPAdapter/MessageServlet

imported PI/PO SSL certificate in transaction STRUST (in case of HTTPS)

Connection Type:	G
Target host:	copy <host> part of the PI/PO url
Service no. (port):	copy <port> part of the PI/PO url
Basic authentication:	X
User:	PI/PO communication user
Password:	PI/PO communication user password
SSL:

For this RFC Destination please use a SAP PI/PO technical communication user with the following set of roles applied: Roles for SAP PI/PO communication user

Assign created RFC destination in Int4 Suite Customizing Wizard (Maintain PI/PO Java stack RFC Destination step)
