Manual creation of Int4 Suite virtualization ICOs (optional)

This step is optional, and applies only if the objects were not imported from .tpz archive.
For more details please see https://int4support.atlassian.net/wiki/x/ZwHTf page.

1. Create Business Component BC_IFTT with description ‘Int4 Suite Virtualization Component’

2. Create two sender channels with following parameters:

   1. CC_SND_SOAP – Description: Int4 Suite virtualization sender channel for regular messages

   2. CC_SND_SOAP2 – Description: Int4 Suite virtualization sender channel for testing adapter modules

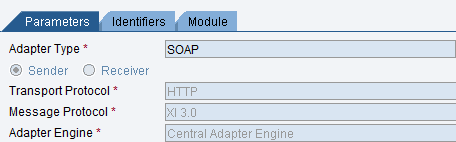

      Please double check that Message Protocol is XI3.0

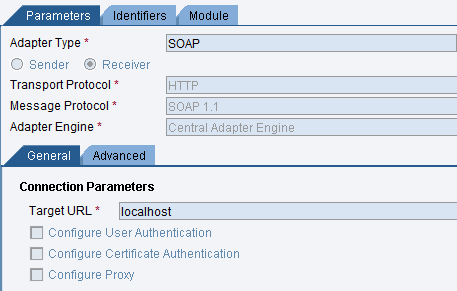

   3. Create a receiver channel CC_RCV_SOAP with description ‘Int4 Suite Virtualization Receiver’ with following parameters:

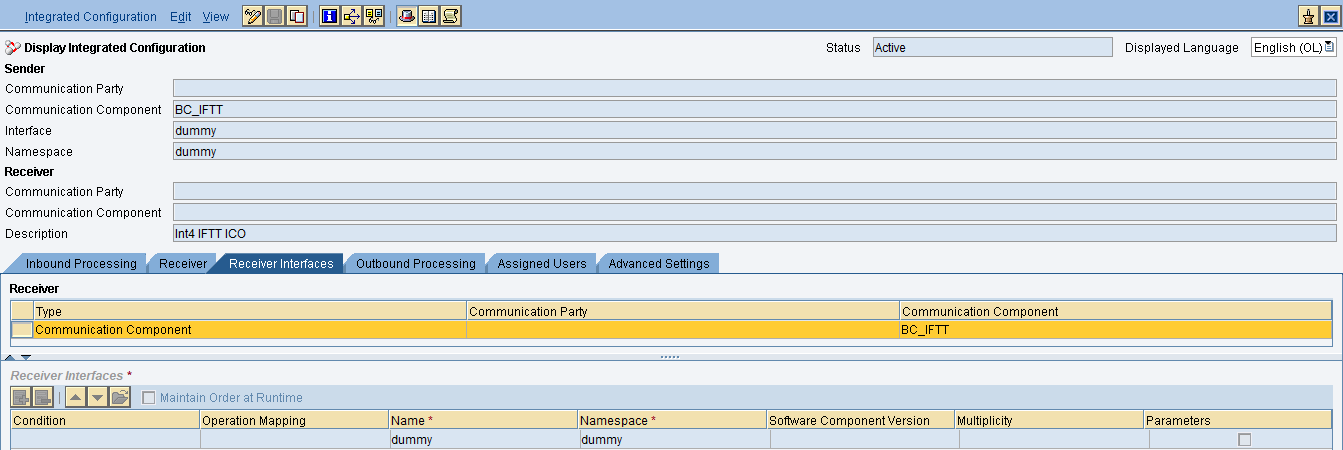

3. Create two Integrated configurations (ICOs):

   1. Comm. Comp: BC_IFTT




      1. Sender IF name: dummy

      2. Sender IF namespace: dummy

      3. Inbound Processing Communication Channel: BC IFTT | CC_SND_SOAP

      4. Receiver Communication Component: BC_IFTT

      5. Receiver IF name: dummy

      6. Receiver IF namespace: dummy

      7. Outbound Processing Communication Channel: BC_IFTT | CC_RCV_SOAP

   2. Comm. Comp: BC_IFTT

      1. Sender IF name: dummy2

      2. Sender IF namespace: dummy2

      3. Inbound Processing Communication Channel: BC IFTT | CC_SND_SOAP2

      4. Receiver Communication Component: BC_IFTT

      5. Receiver IF name: dummy

      6. Receiver IF namespace: dummy

      7. Outbound Processing Communication Channel: BC_IFTT | CC_RCV_SOAP

4. Activate all the objects.

It is possible to name the above objects according to own naming convention. In such case, it is necessary to update default names in the Global Parameters configuration. Read more about it here:Int4 Suite Configuration | Configure-Global-Parameters-activity
