How to setup environments from scratch

SAP PI/PO

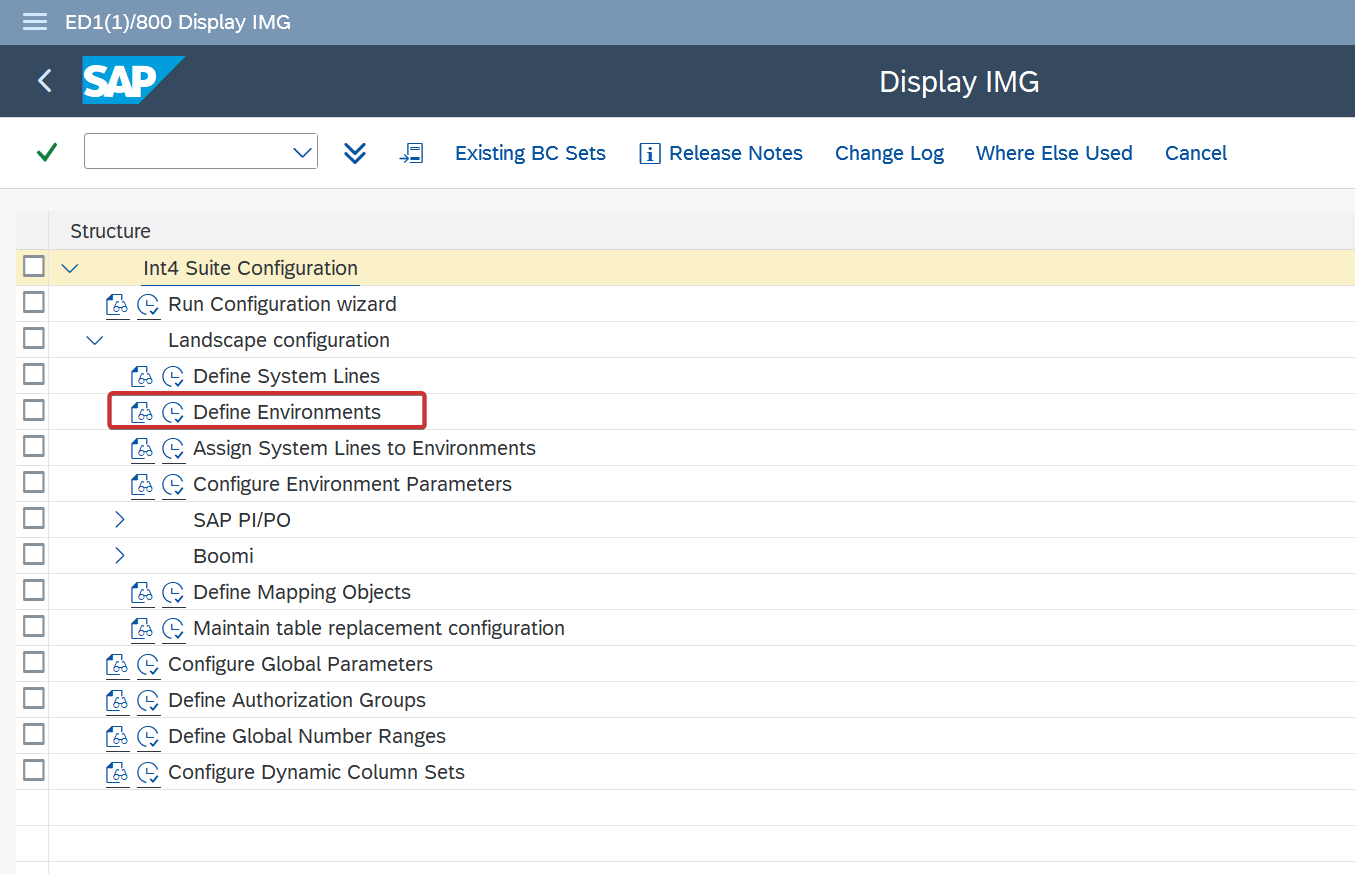

For SAP PI/PO one RFC per each environment needs to maintained, rest of the connections will be genereated using Configuration wizzard. Launch transaction /INT4/IFTT_IMG and select “Define Environments”

Click on “New Entries“ button:

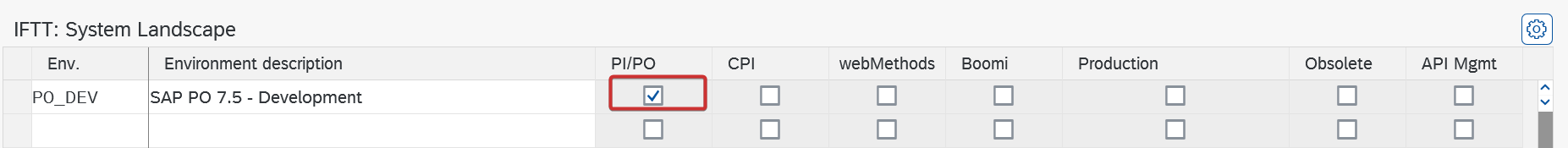

Put Enviromennt name and description, mark checkbox for PI/PO, and save it:

Non-prod Environment

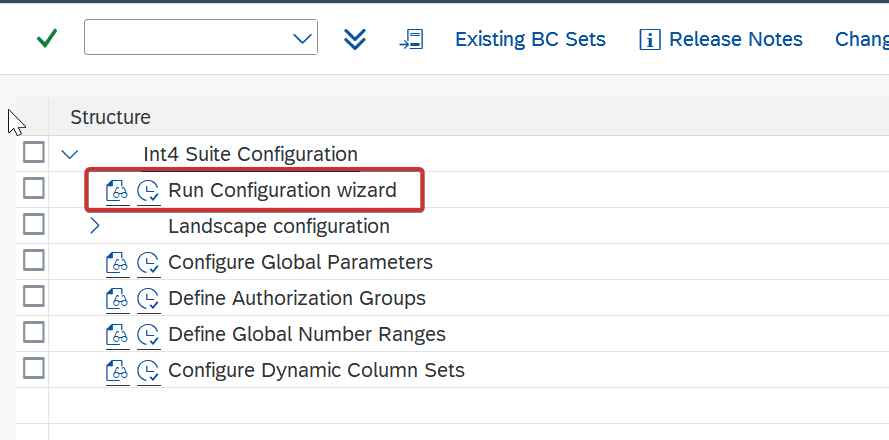

Go back and run “Run Configuration Wizard”

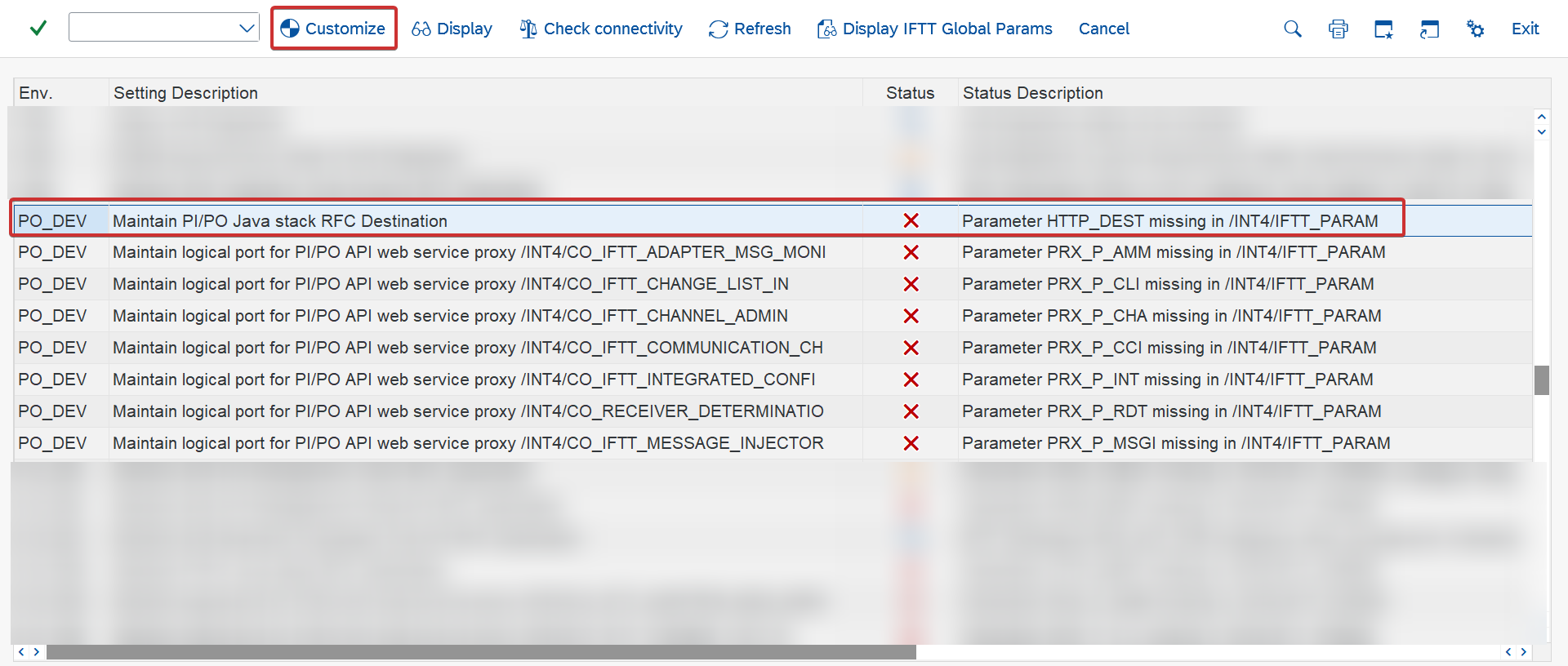

Locate your Environment entries and select “Maintain PI/PO Java stack RFC Destination” and select “Customize” button.

There are two options to configure this:

• Assign existing RFC

• Create new destination

Assign existing RFC

Point to the right destination of type G.

Create new destination

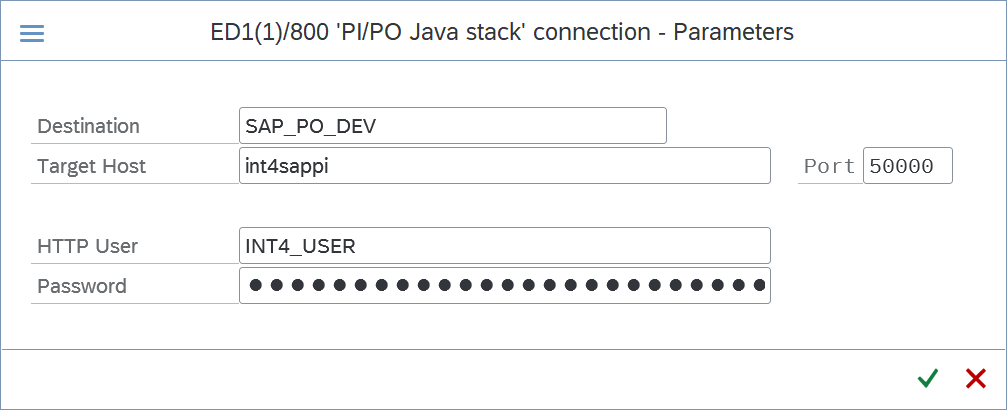

Fill out all necessary field and click on green tick button.

Roles for technical user can be found here: Roles for SAP PI/PO communication user

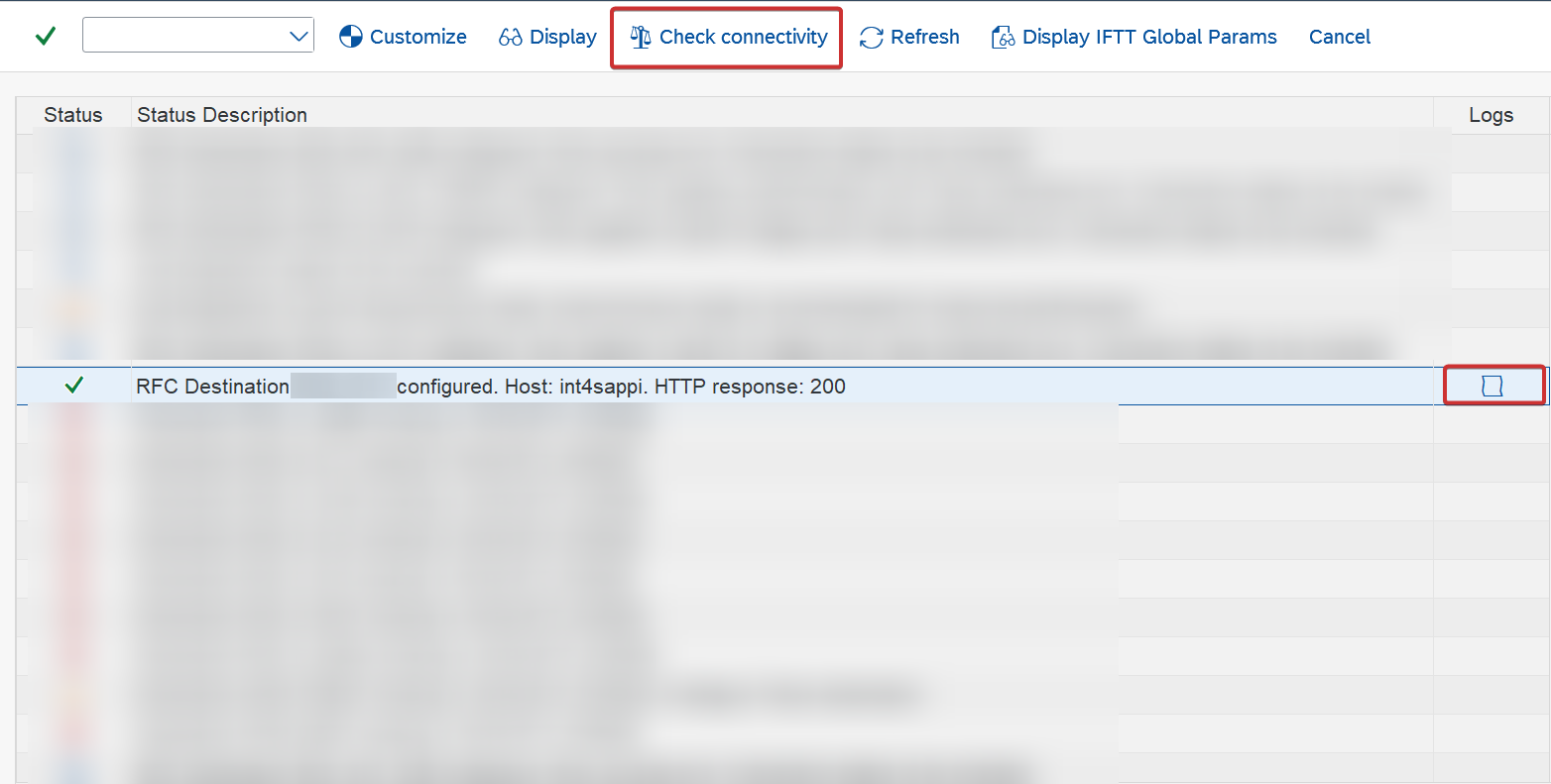

After RFC is assigned you can perform test connection

This will check if RFC was maintained correctly. In case of errors. please investigate the log:

After RFC was successfully maintained and test connection is also successful, configure next activities.

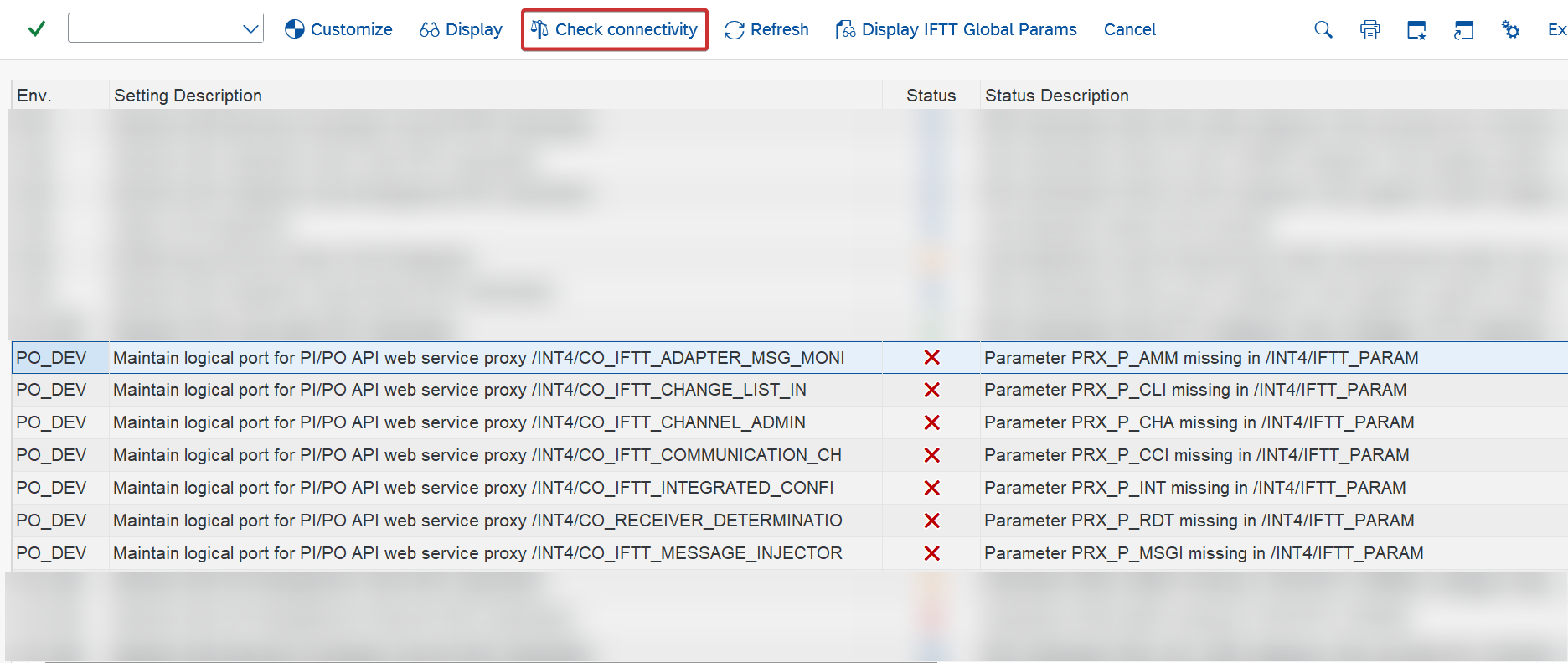

For each activity “Maintain logical port for PI/PO API web service proxy …“ Click on “Customize“ button, and create or assign logical port.

Production Environment

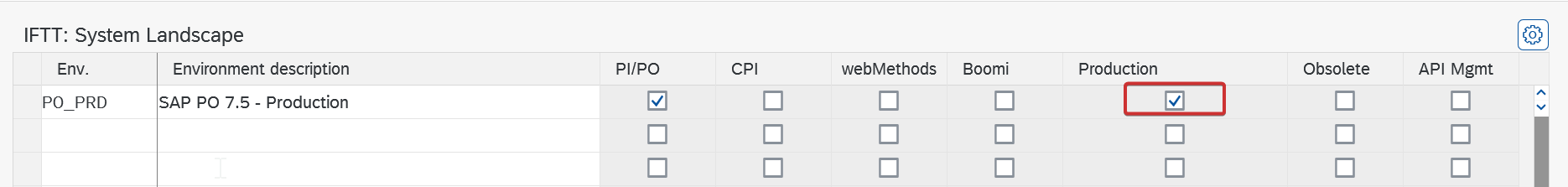

For production environment the checkbox “Production“ needs to be checked on environment level:

This will prevent sending messages to production environment by user mistake. Rest activities needs to be done the same as for non-production environment. Roles for the technical user can be find here: A read-only role for SAP PO connection to production systems

SAP Integration Suite -Cloud Foundry

For SAP Integration Suite there is a need to configure 3 RFCs per each environment:

• Managment destination - this destination is needed for: deploing iFlow, getting list of iFlows, getting payloads, etc.

• Managment - Token destination - this destination is needed to fetch OAuth2 token which is used in calls in Managment destination,

• Runtime destination - this destination is needed for executing Test Cases on SAP Integration Suite Environment

Non-prod Environment

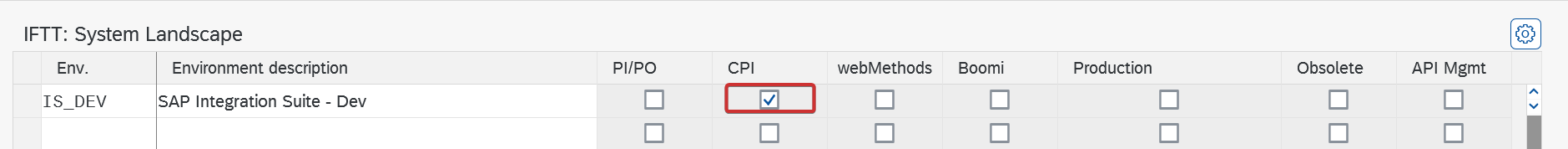

Create environment or add checkbox “CPI“ to existing one:

When you enter “Run Configuration Wizard“ in /INT4/IFTT_IMG transaction.

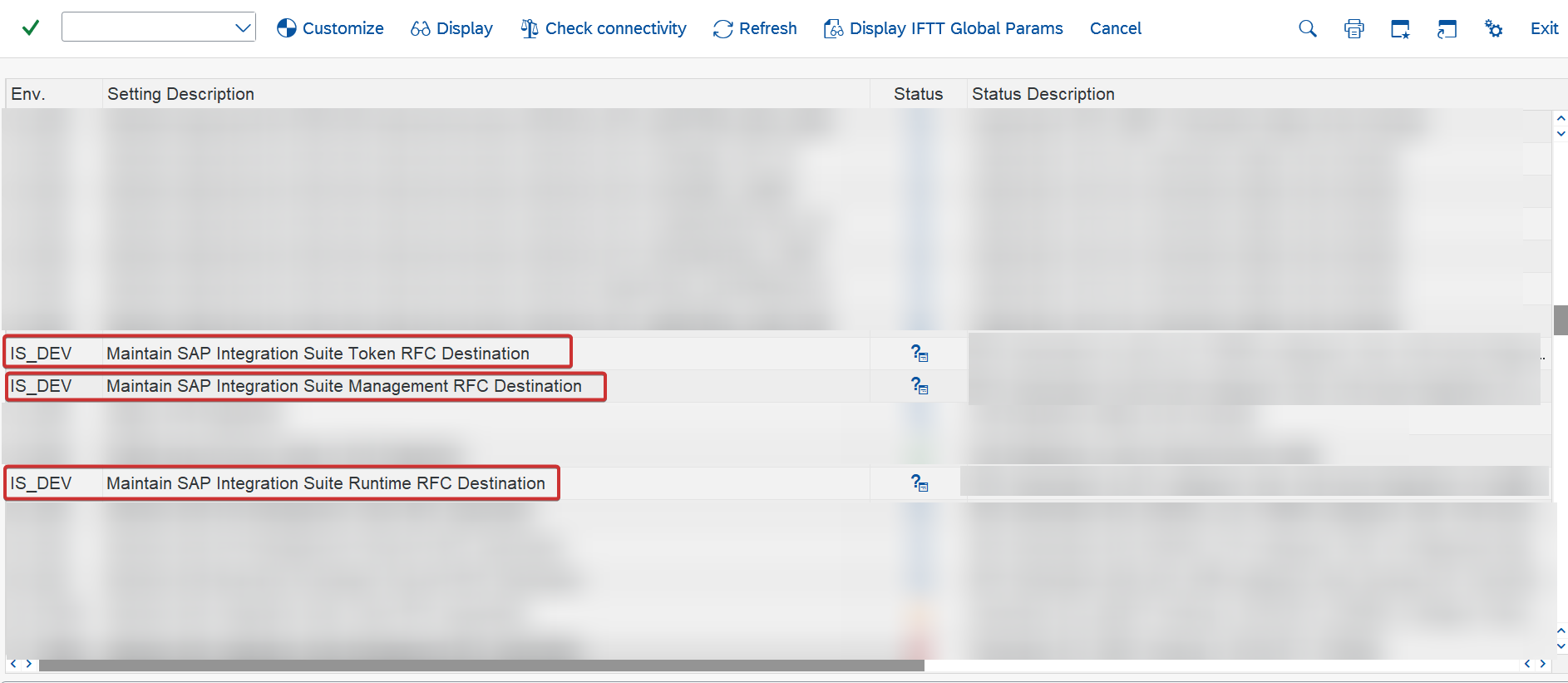

Now you need to configure those 3 activities:

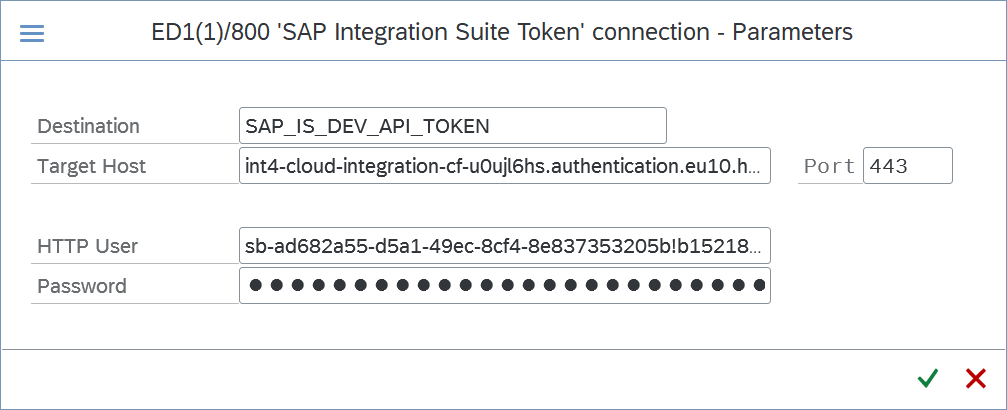

Configure “Maintain SAP Integration Suite Token RFC Destination” Click on “Customize” button. Similarly as for SAP PI/PO, you can choose to create new RFC, or assign already existing one.

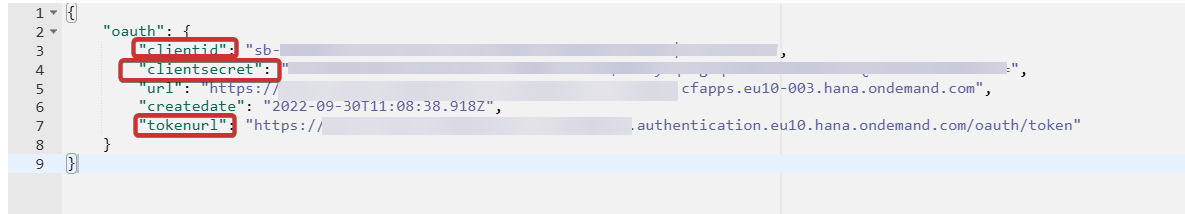

You need key from SAP BTP instance where SAP Integration Suite is deployed. For service Process Integration Runtime, plan api.

For Target Host remember to remove ‘https://' and '/oauth/token"’part.

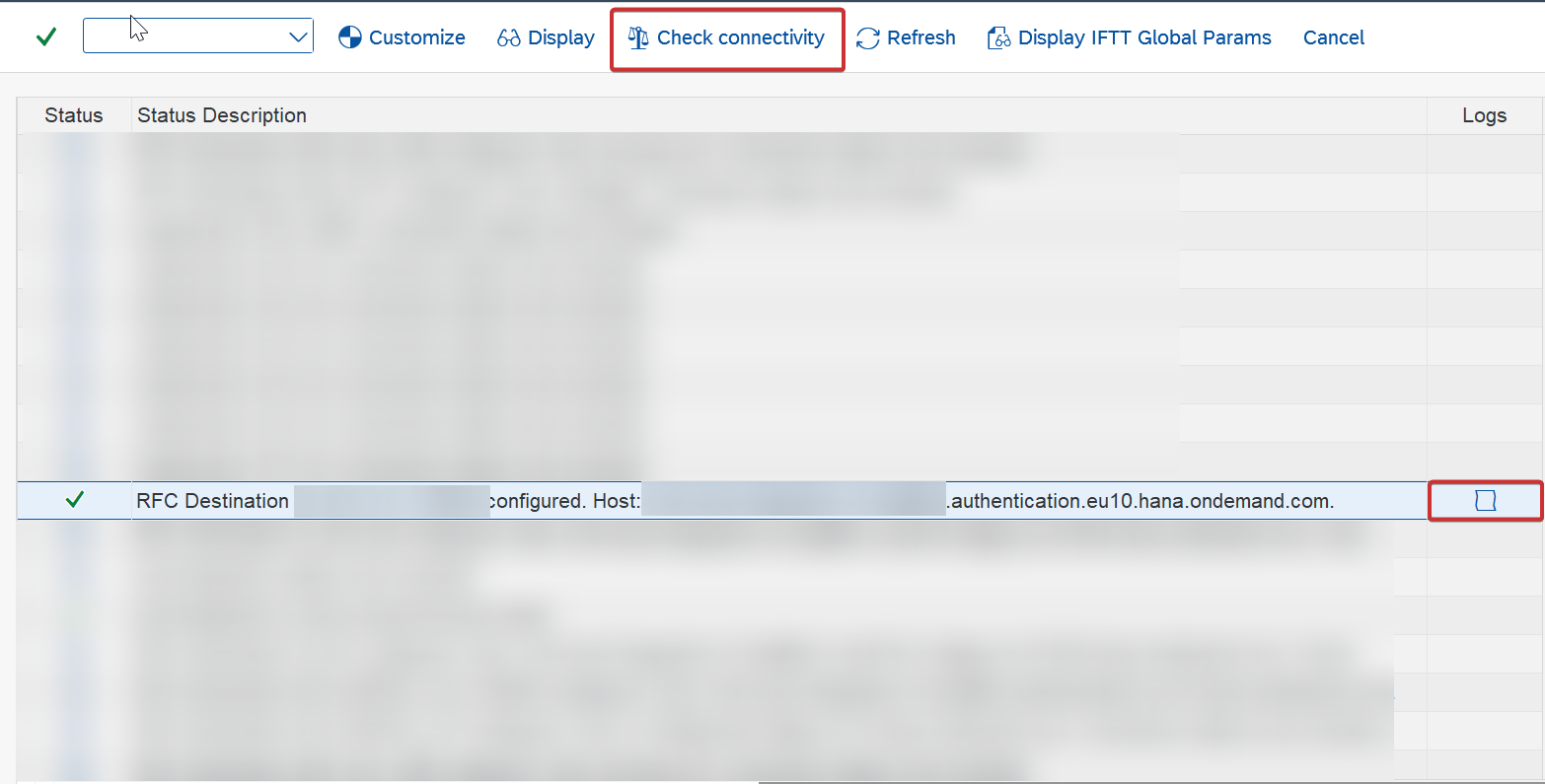

After configuration is done you can check connectivity of the assigned RFC:

You should see name of the endpoint like in the screenshot above. If there are some problems you can investigate it in logs.

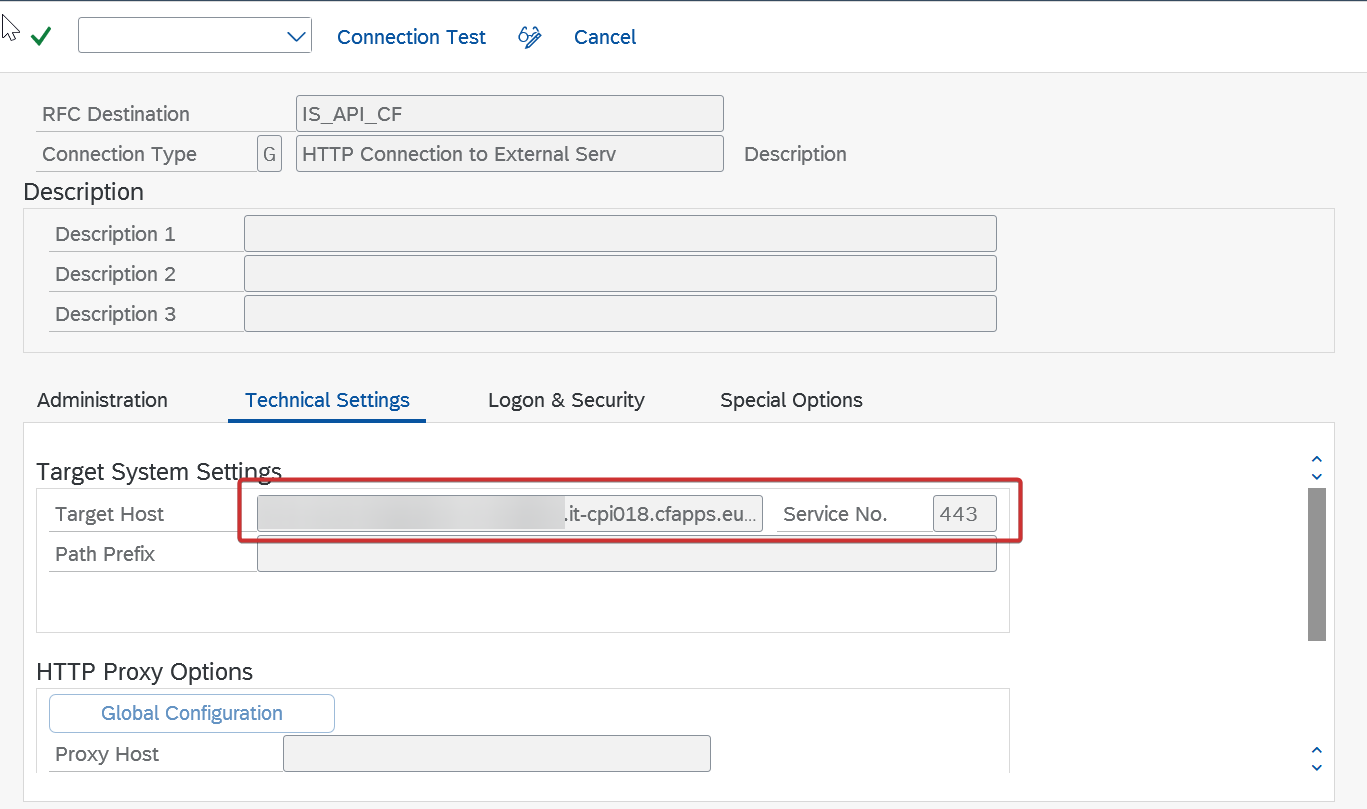

Click on 'Maintain SAP Integration Suite Management RFC Destination', in this destination you need to maintain only host for SAP Cloud Integration:

This is only host, do not configure any user/password under Logon & Security.

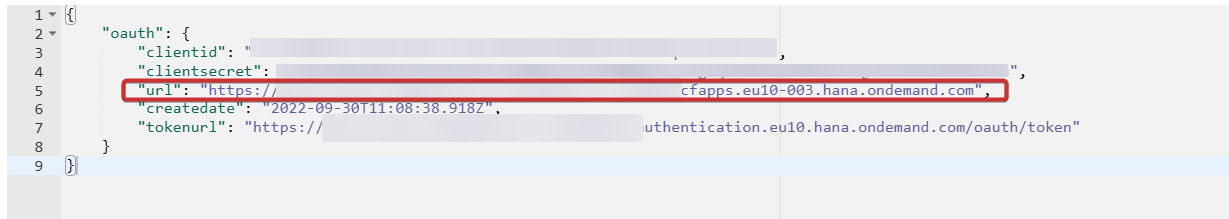

You need to use 'url' value.

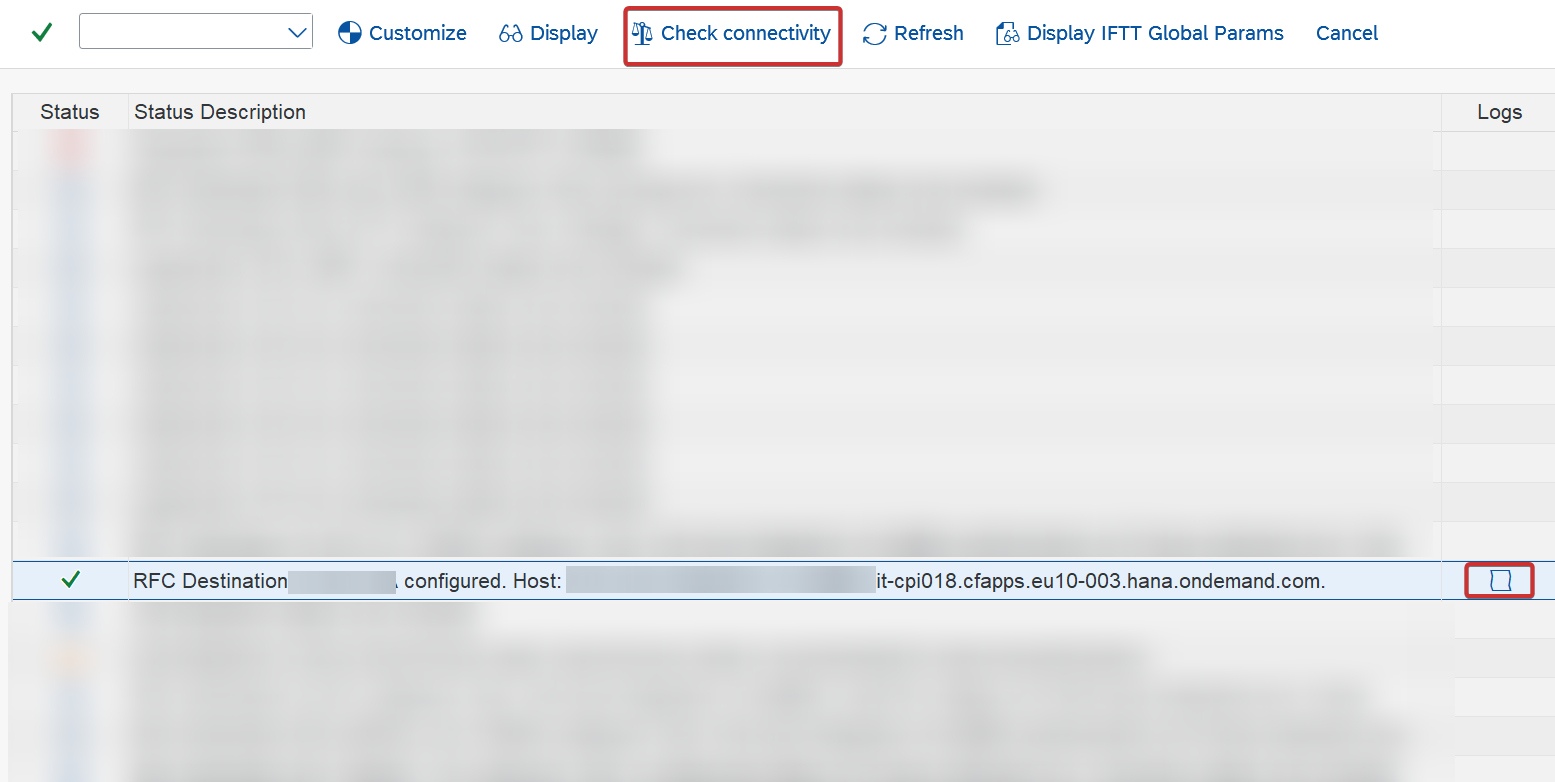

After RFC is maintained, perform connectivity test:

In case of any issues, please investigate the logs.

Choose ‘Maintain SAP Integration Suite Runtime RFC Destination' and click on 'Customize’ .

For this destination you need Service Keys created under Process Integration Runtime, integration-flow plan.

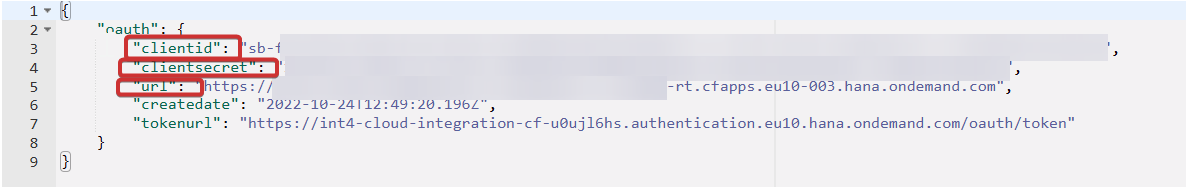

Here is example key with values that needs to be used in RFC.

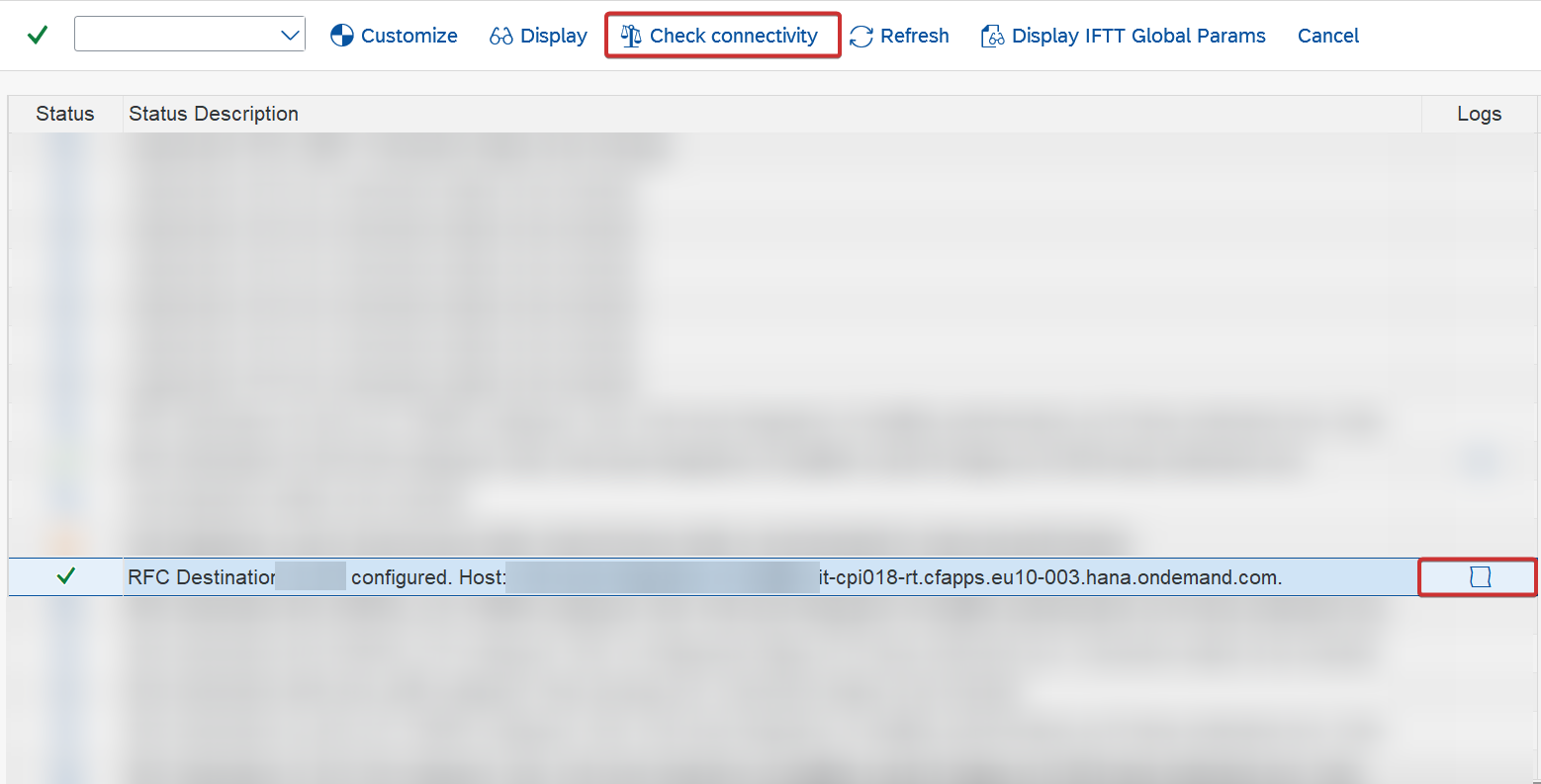

After RFC is configured, perform connection test:

In case of any issues, please check logs.

Production Environment

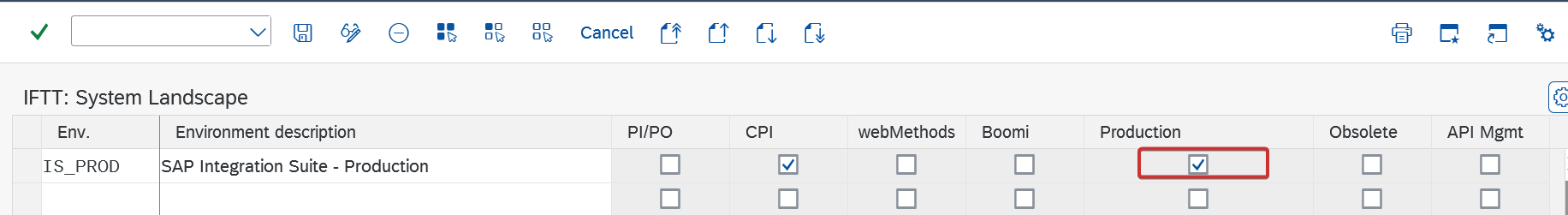

Setup of production Environment is similar like non-production one. During configuration you need to mark “Production“ checkbox on Environment:

This will prevent sending messages to production environment.
