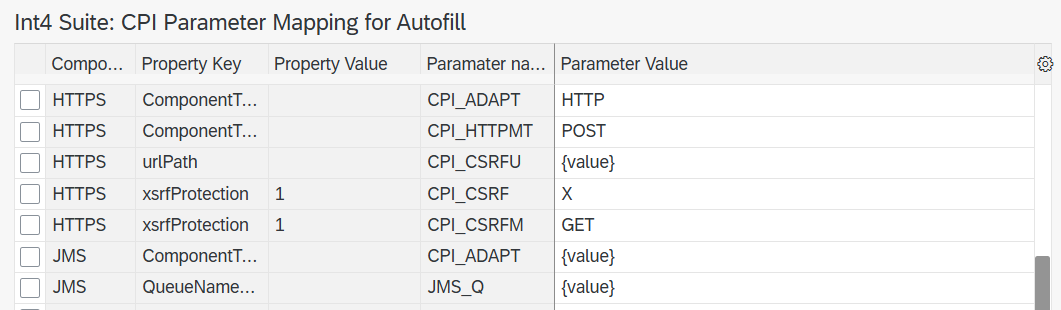

In Int4 Suite Configuration there is a maintenance view Maintain Autofill Parameters Mapping for CPI that is allowing mapping between SAP Cloud Integration Sender Channel Properties and Int4 Suite Automation Object parameters:
-
Component Type - read from property with key ComponentType - allows to map values for the specific adapter type
-
Property Key - key of the property
-
Property Value - allows filtering on the value - for example if xsrfProtection key has value “1” then CPI_CSRP parameter = X
-
Parameter name - technical name of the Automation Object parameter
-
Parameter value - value to be assigned to the parameter - it can be constant or {value} - which means value from the key provided in Property Key column
Example list of values:
|
Component Type |
Property Key |
Property Value |
Parameter name |
Parameter value |
|---|---|---|---|---|
|
AMQP |
ComponentType |
|
CPI_ADAPT |
{value} |
|
AMQP |
credentialName |
|
EM_CRED |
{value} |
|
AMQP |
destinationName |
|
EM_QUEUE |
{value} |
|
AMQP |
host |
|
EM_HOST |
{value} |
|
FTP |
ComponentType |
|
CPI_ADAPT |
FTP |
|
FTP |
credential_name |
|
SFTP_CRED |
{value} |
|
FTP |
fileName |
|
SFTP_FILE |
{value} |
|
FTP |
host |
|
SFTP_ADD |
{value} |
|
FTP |
location_id |
|
SFTP_LOC_I |
{value} |
|
FTP |
path |
|
SFTP_DIR |
{value} |
|
FTP |
proxyType |
|
SFTP_PROXY |
{value} |
|
HTTPS |
ComponentType |
|
CPI_ADAPT |
HTTP |
|
HTTPS |
ComponentType |
|
CPI_HTTPMT |
POST |
|
HTTPS |
urlPath |
|
CPI_CSRFU |
{value} |
|
HTTPS |
xsrfProtection |
1 |
CPI_CSRF |
X |
|
HTTPS |
xsrfProtection |
1 |
CPI_CSRFM |
GET |
|
JMS |
ComponentType |
|
CPI_ADAPT |
{value} |
|
JMS |
QueueName_inbound |
|
JMS_Q |
{value} |
|
ProcessDirect |
ComponentType |
|
CPI_ADAPT |
PROCESSDIRECT |
|
ProcessDirect |
address |
|
CPI_PDENDP |
{value} |
|
SFTP |
ComponentType |
|
CPI_ADAPT |
SFTP |
|
SFTP |
credential_name |
|
SFTP_CRED |
{value} |
|
SFTP |
fileName |
|
SFTP_FILE |
{value} |
|
SFTP |
host |
|
SFTP_ADD |
{value} |
|
SFTP |
location_id |
|
SFTP_LOC_I |
{value} |
|
SFTP |
path |
|
SFTP_DIR |
{value} |
|
SFTP |
privateKeyAlias |
|
SFTP_KEY |
{value} |
|
SFTP |
proxyType |
|
SFTP_PROXY |
{value} |
